Access Control System
Smart Card Reader

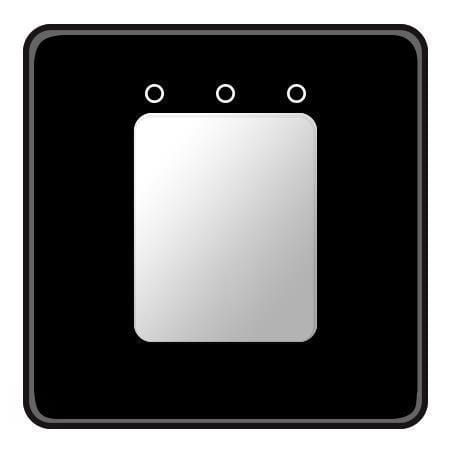

AC-ACQR201
QR Code Card Reader
Key Features
- 3 color LED light with buzzer indicator
- Scratch-resistant acrylic front panel (4H hardness)
- Optional colors, can be customized for the end-user panel design
- Reverse polarity protection, all inputs and outputs have DC 12V and electrostatic protection
- Piezoelectric ceramic buzzer, ensuring consistent sound quality for mass-produced products
- Standard Wiegand interface, optional TCP/IP network interface and RS485 interface
Specification
| Item | Detail |
|---|---|
| Model | AC-ACQR201 |
| Dimensions | 92mm × 46.6mm × 92mm |
| Rated Voltage | DC 7V ~ 15V |
| Rated Current | 100mA (max) |
| Operating Temperature | -30°C ~ 70°C |
| Operating Humidity | 10 – 90% |
| Reading Distance | >5cm |
| Signal Transmission Distance | 150m |
| Data Interface | Wiegand & RS485 |
